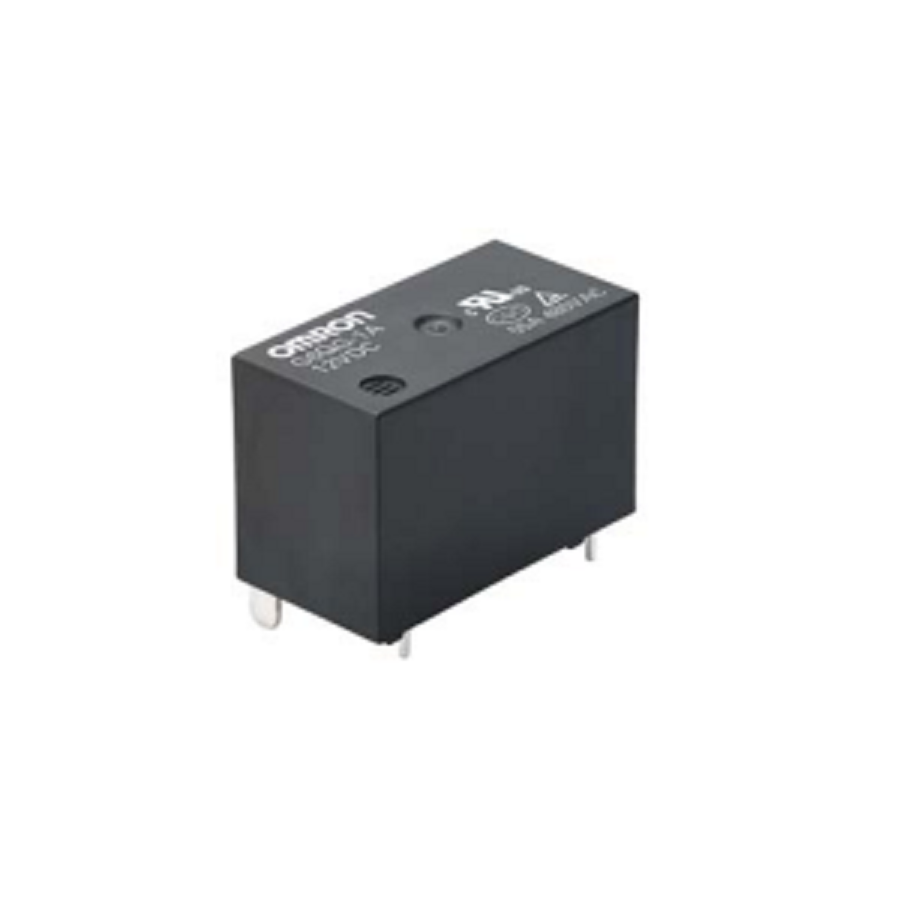

G6QG-1A DC12
Manufacturer:
Omron
Mfr.Part #:
G6QG-1A DC12
Datasheet:
Description:
Power Relays Through Hole 117 mA 12 V General Purpose
| Parameter | Value |
|---|---|
| Termination Style | PC Pin |
| Coil Voltage (DC) | 12 V |
| RoHS | Compliant |
| Must Release Voltage | 600 mV |
| Switching Voltage | 480 V |
| Packaging | Tray |
| Must Operate Voltage | 9 V |
| Height | 20.5 mm |
| Width | 16 mm |
| Coil Type | Non-Latching |
| Contact Material(Contact Finish) | Silver Alloy, Cadmium Free |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Length | 30.5 mm |
| Coil Current | 117 mA |
| Relay Type | General Purpose |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Contact Current Rating | 55 A |
Stock: 281
Distributors
pcbx
pcbxUnit Price$4.86284
Ext.Price$4.86284
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.86284 | $4.86284 |
| 10 | $4.56190 | $45.61900 |
| 25 | $4.05493 | $101.37325 |
| 50 | $3.84890 | $192.44500 |
| 100 | $3.64884 | $364.88400 |
| 300 | $3.47231 | $1041.69300 |
| 500 | $3.30430 | $1652.15000 |
| 1000 | $3.19145 | $3191.45000 |
